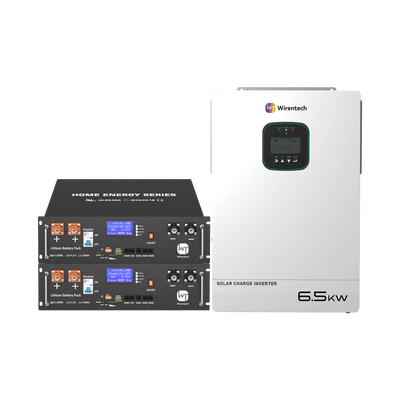

Wirentech 10.24kWh LiFePO4 Battery + 6.5kW Hybrid Solar Inverter Kit
Wirentech 10.24kWh LiFePO4 Battery + 6.5kW Hybrid Solar Inverter Kit
Wirentech 10.24kWh LiFePO4 Battery + 6.5kW Hybrid Solar Inverter Kit
Wirentech 10.24kWh LiFePO4 Battery + 6.5kW Hybrid Solar Inverter Kit
Wirentech 10.24kWh LiFePO4 Battery + 6.5kW Hybrid Solar Inverter Kit
Wirentech 10.24kWh LiFePO4 Battery + 6.5kW Hybrid Solar Inverter Kit

Wirentech 10.24kWh LiFePO4 Battery + 6.5kW Hybrid Solar Inverter Kit

$2,399.99
In stock, ready to ship
Secure payment
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Reliable delivery
UPS FedEx DHL

Services & Benefits

Free Shipping

Free shipping is available on eligible products and destinations when shown on the product page or at checkout. Remote-area, freight, customs, or special-handling charges may apply where applicable.

View shipping policy
30-Day Return Window

Products purchased directly from Wirentech may be eligible for return within 30 days of delivery. Items must meet the return conditions, and prior authorization is required. Return shipping or other fees may apply to non-quality-related returns.

View return policy
Ships from Our US Warehouse

Eligible in-stock orders ship from our CA warehouse. Most orders are processed within 1-2 business days and typically arrive within 3-7 business days after shipment. Delivery times are estimates and may vary by destination, carrier schedule, weather, and freight requirements.

View delivery details
10-Year Warranty

Eligible Wirentech lithium batteries are backed by a 10-year limited warranty covering verified defects in materials or workmanship under normal use. Warranty eligibility and available remedies are subject to the product condition, proof of purchase, installation details, and technical review.

View warranty policy

Pairs well with
Order before today’s Pacific Time cutoff: --:--:--
Ordered Today
Ships 1–2 business days
Delivery 4–9 business days

Weekend orders will be processed the following Monday.

Family Backup Power

Two WT5100 rack batteries provide 10.24kWh of nominal storage alongside a 6.5kW 120V single-phase inverter for family backup, solar self-use, and selected garage loads.

Everyday 120V Loads

Support a broader mix of compatible 120V loads such as refrigeration, lighting, networking, kitchen outlets, room air conditioning, and selected tools while reserving surge headroom.

Understand Voltage Limits

This system supports 120V loads only and must not be connected to 240V electric dryers, ranges, Level 2 EV chargers, or central 240V HVAC equipment.

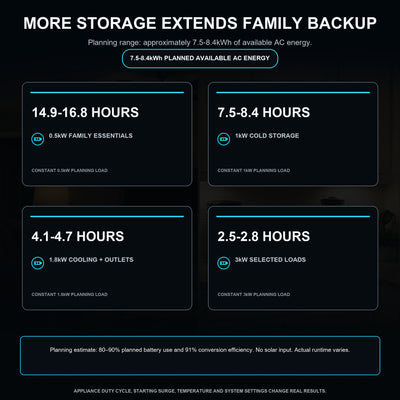

Family Runtime Planning

Estimated runtime ranges from 14.9–16.8 hours at a 0.5kW essentials load to 2.5–2.8 hours at a 3kW selected load, depending on operating conditions.

Reliable Output Performance

The inverter provides 6.5kW continuous 120V pure sine wave output, 9.75kVA peak power, 10ms typical transfer, and motor-starting support up to 4HP.

Faster Solar Recovery

The inverter supports up to 9kW of PV input, a 90–260V MPPT operating range, and a 300V maximum PV open-circuit voltage when correctly configured.

Double Stored Energy

A second 5.12kWh WT5100 doubles nominal storage to 10.24kWh while CAN and RS485 communication coordinate the two-module battery bank.

Plan Installation Space

The two IP22 batteries require a supported rack or shelf, while the wall-mounted inverter requires suitable structural support, ventilation clearances, and a dry installation location.

Core System Hardware

The core system combines two 51.2V 100Ah WT5100 rack batteries with one 6.5kW inverter for 10.24kWh of nominal storage on a 51.2V battery platform.

FAQs

What is included with the system?

The core system includes two WT5100 51.2V 100Ah rack batteries and one 6.5kW 120V single-phase inverter. Rack, shelf, cables, protection devices and other installation accessories must match the final system design.

How much energy and power does it provide?

The two WT5100 batteries provide 10.24kWh of nominal storage. The inverter delivers 6.5kW of continuous 120V pure sine wave output and up to 9.75kVA of peak power.

What household loads can the system support?

The system can support compatible 120V loads such as refrigerators, freezers, lights, networking equipment, televisions, microwaves, outlets, room air conditioners and selected tools. Combined running power and starting surge must remain within inverter limits.

Can it power 240V appliances?

No. This package uses a 120V single-phase inverter and must not be connected to 240V electric dryers, ranges, Level 2 EV chargers, central 240V HVAC systems or other 240V loads.

How long can the system provide backup power?

Planning estimates range from approximately 14.9–16.8 hours at a 0.5kW essentials load to 2.5–2.8 hours at a 3kW selected load. Actual runtime varies with load, reserve settings, efficiency, temperature and operating conditions.

How much solar input does the inverter support?

The inverter supports up to 9kW of PV input, a 90–260V MPPT operating range and a 300V maximum PV open-circuit voltage. Actual charging performance depends on array design, weather, orientation and active loads.

Do the batteries include BMS protection?

Yes. Each WT5100 includes an intelligent BMS that monitors voltage, current, temperature and cell balance while providing overcharge, over-discharge, overcurrent and short-circuit protection. CAN and RS485 communication are supported.

Is professional installation required?

Yes. The two batteries weigh approximately 202.8 lb combined and require a supported rack or shelf in a dry location. The wall-mounted inverter requires suitable support and ventilation clearances. The batteries include a 10-year limited warranty and the inverter includes a 5-year limited warranty; terms apply.
