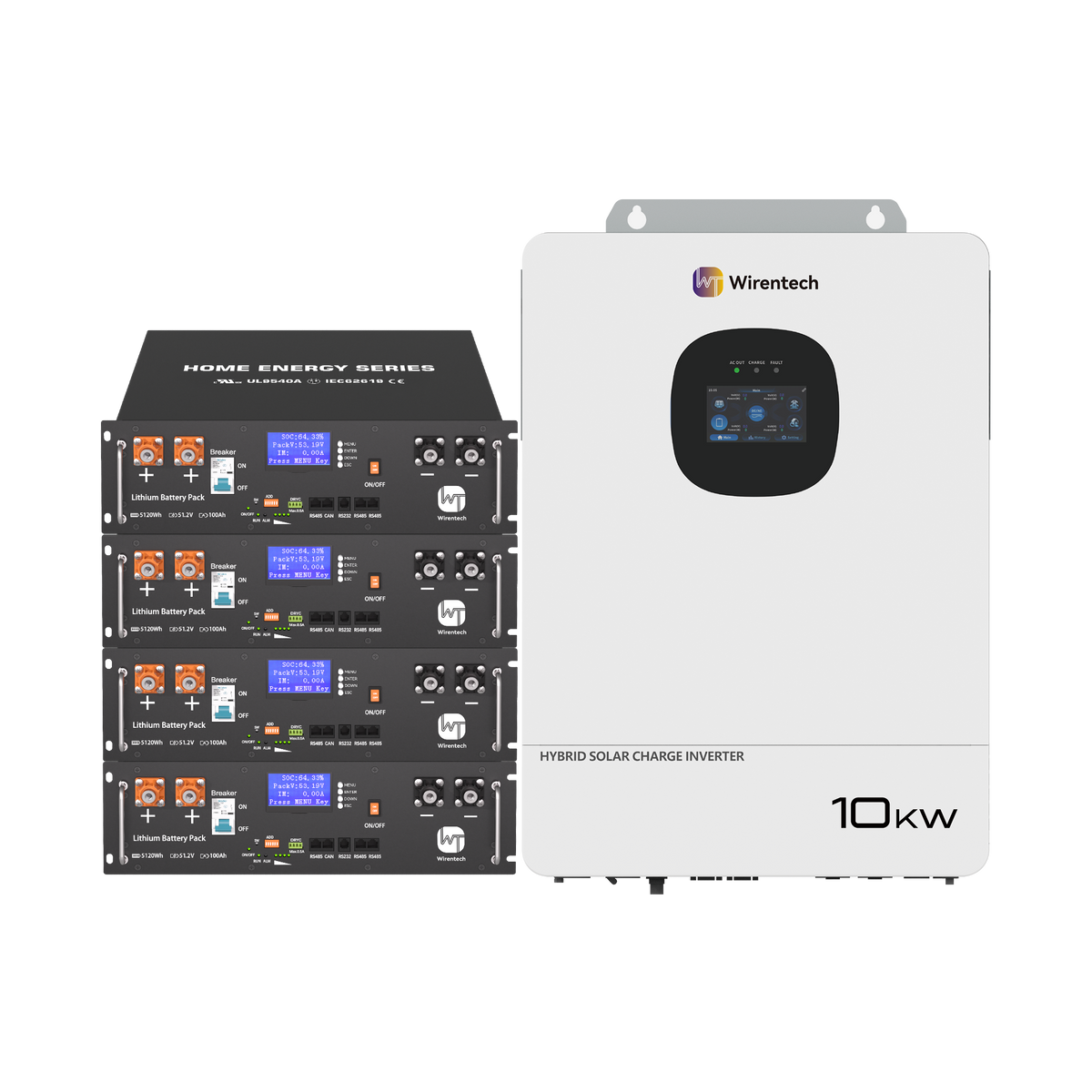

Wirentech 20.48kWh LiFePO4 Battery + 10kW Hybrid Solar Inverter Kit
Wirentech 20.48kWh LiFePO4 Battery + 10kW Hybrid Solar Inverter Kit
Wirentech 20.48kWh LiFePO4 Battery + 10kW Hybrid Solar Inverter Kit
Wirentech 20.48kWh LiFePO4 Battery + 10kW Hybrid Solar Inverter Kit
Wirentech 20.48kWh LiFePO4 Battery + 10kW Hybrid Solar Inverter Kit
Wirentech 20.48kWh LiFePO4 Battery + 10kW Hybrid Solar Inverter Kit

Wirentech 20.48kWh LiFePO4 Battery + 10kW Hybrid Solar Inverter Kit

$4,449.99
In stock, ready to ship
Secure payment
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Reliable delivery
UPS FedEx DHL

Services & Benefits

Free Shipping

Free shipping is available on eligible products and destinations when shown on the product page or at checkout. Remote-area, freight, customs, or special-handling charges may apply where applicable.

View shipping policy
30-Day Return Window

Products purchased directly from Wirentech may be eligible for return within 30 days of delivery. Items must meet the return conditions, and prior authorization is required. Return shipping or other fees may apply to non-quality-related returns.

View return policy
Ships from Our US Warehouse

Eligible in-stock orders ship from our CA warehouse. Most orders are processed within 1-2 business days and typically arrive within 3-7 business days after shipment. Delivery times are estimates and may vary by destination, carrier schedule, weather, and freight requirements.

View delivery details
10-Year Warranty

Eligible Wirentech lithium batteries are backed by a 10-year limited warranty covering verified defects in materials or workmanship under normal use. Warranty eligibility and available remedies are subject to the product condition, proof of purchase, installation details, and technical review.

View warranty policy

Pairs well with
Order before today’s Pacific Time cutoff: --:--:--
Ordered Today
Ships 1–2 business days
Delivery 4–9 business days

Weekend orders will be processed the following Monday.

High Output Home

Four WT5100 rack batteries provide 20.48kWh of nominal storage alongside a 10kW 120/240V split-phase inverter for outage backup, solar self-use, and selected EV-ready loads.

Power Versus Runtime

The inverter supports up to 10kW of simultaneous load while the 20.48kWh battery bank provides approximately 15.1–17.0kWh of planned available AC energy for runtime planning.

Schedule Demanding Loads

Prioritize or stagger central HVAC, well pumps, electric cooking, and EV charging to keep combined demand within system limits and preserve stored energy.

Runtime Load Planning

Estimated runtime ranges from 15.1–17.0 hours at a 1kW essential load to 2.1–2.4 hours at a 7.2kW EV charging load, depending on operating conditions.

Solar Energy Shifting

Capture surplus solar energy during the day, offset evening peak demand, schedule one heavy load at a time, and protect an overnight backup reserve.

Split Phase Performance

The inverter provides 10kW 120/240V split-phase pure sine wave output, 15kVA peak power, 10ms typical transfer, and motor-starting support up to 5HP.

Coordinated Battery Protection

Intelligent BMS protection monitors voltage, current, temperature, and cell balance across four WT5100 modules while supporting CAN and RS485 communication.

Professional Installation Planning

The four IP22 battery modules require a supported rack or shelf, while the wall-mounted inverter requires suitable ventilation, structural support, and code-compliant professional installation.

Core System Hardware

The core system combines four 51.2V 100Ah WT5100 rack batteries with one 10kW inverter for 20.48kWh of nominal storage on a 51.2V battery platform.

FAQs

What is included with the system?

The core system includes four WT5100 51.2V 100Ah rack batteries and one 10kW 120/240V split-phase hybrid inverter. Rack, shelf, cables, protection devices and other installation accessories must match the final system design.

How much energy and power does it provide?

The four WT5100 batteries provide 20.48kWh of nominal storage. The inverter delivers 10kW of rated 120/240V split-phase output and up to 15kVA of peak power.

Can it back up an entire home?

The system can support prioritized household essentials and selected high-demand loads. Actual whole-home coverage depends on simultaneous demand, appliance starting surge, battery reserve and how the backup circuits are configured.

How long can the system provide backup power?

Planning estimates range from approximately 15.1–17.0 hours at a 1kW essential load to 2.1–2.4 hours at a 7.2kW EV charging load. Actual runtime varies with load, reserve settings, efficiency, temperature and operating conditions.

Can it support HVAC, pumps and EV charging?

It can support compatible high-demand loads when voltage, running power and starting surge remain within system limits. Prioritize or stagger HVAC, pumps, electric cooking and EV charging instead of operating every heavy load continuously.

Can it store solar energy for evening use?

Yes. A properly configured system can capture surplus daytime solar energy, offset evening peak demand and preserve a battery reserve for overnight backup. Results depend on solar production, load scheduling and reserve settings.

Do the batteries include BMS protection?

Yes. Each WT5100 includes an intelligent BMS that monitors voltage, current, temperature and cell balance while providing overcharge, over-discharge, overcurrent and short-circuit protection. CAN and RS485 communication are supported.

Is professional installation required?

Yes. The four batteries weigh approximately 405.6 lb combined and require a properly supported rack or shelf in a dry location. The wall-mounted inverter also requires suitable structural support, ventilation clearances and code-compliant electrical installation.
