FAQs
Will one 10kW inverter run my whole house?
It depends on which appliances run at the same time. This inverter provides 10kW of combined 120/240V split-phase output, not 10kW per line. Homes with several large electric appliances may need load management or additional capacity. Size the system around simultaneous demand and startup surges, not monthly electricity use alone.
Can it start my central AC, heat pump, or well pump?
It can power compatible motor-driven loads, but startup demand matters as much as running power. The manual lists 15kVA peak output in split-phase mode. Check appliance starting requirements, other running loads, and battery discharge capability. An AC tonnage or pump horsepower rating alone does not confirm compatibility.
What batteries do I need, and will one battery be enough?
The inverter supports lead-acid and compatible lithium batteries; its technical table lists a 51.2V nominal battery voltage. Whether one battery is enough depends on its discharge limits, usable energy, BMS compatibility, and your loads. Matching voltage alone does not guarantee full 10kW output. Confirm the battery model and communication settings before purchase.
How long will it power my home during an outage?
Runtime depends on usable battery energy and average power consumption, not the inverter’s 10kW rating. Estimate runtime by dividing usable battery capacity in kWh by the average load in kW, allowing for conversion losses and your reserve setting. Reducing high-power loads extends backup time.
Can I install solar now and add batteries later?
Yes. The manual supports solar and utility operation without a battery. You can add compatible storage later. Battery-free operation should not be treated as dependable outage backup. Plan the future battery location, connections, and capacity as part of the initial installation.
How many solar panels can I connect?
Panel count depends on panel voltage, current, wattage, and string layout. The pictured M220 configuration accepts 6,000W and 22A per MPPT, with a 90–450V MPPT range and 500V maximum PV open-circuit voltage. Check all limits, including cold-weather string voltage. The combined 12kW PV input allowance does not increase the inverter’s 10kW AC output rating.
Can a generator charge my batteries during cloudy weather?

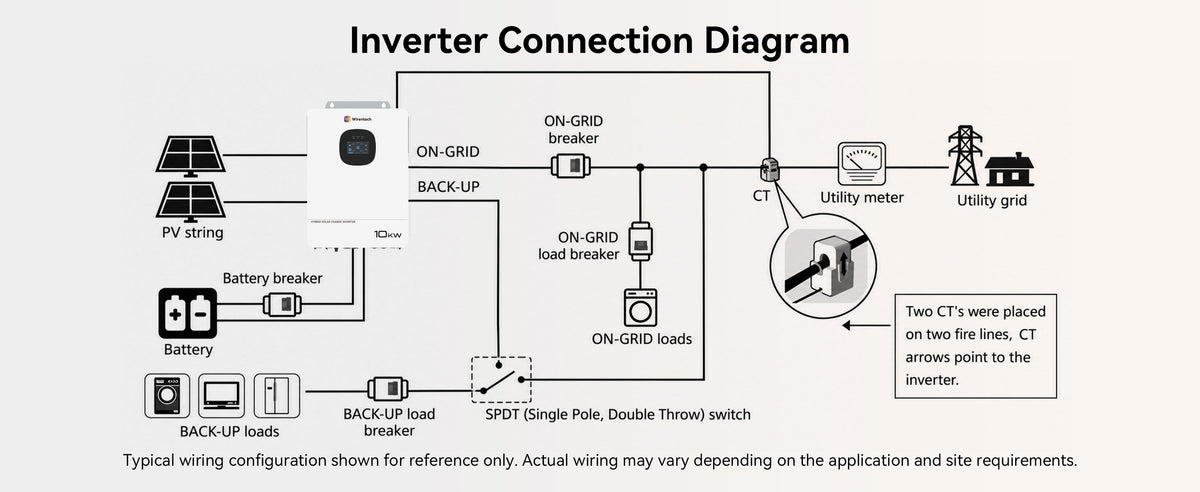

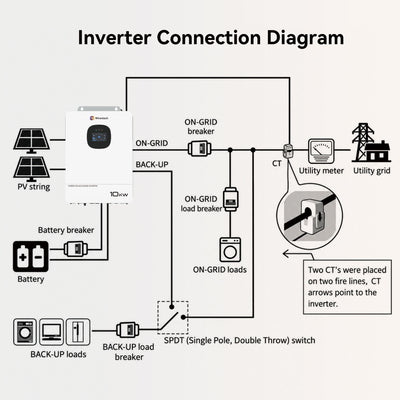

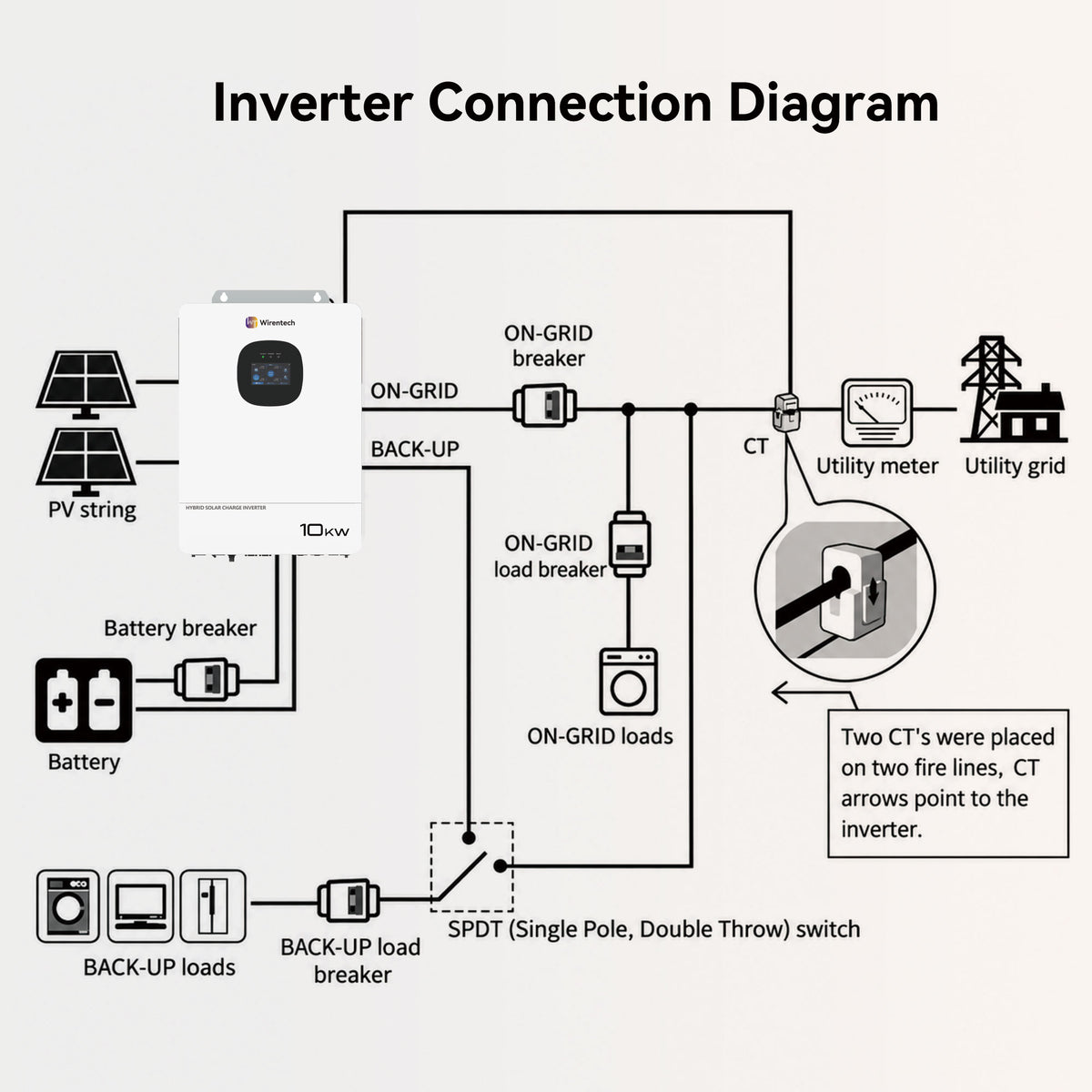

Yes. A compatible generator can supply the AC input to power loads and charge batteries. Utility and generator power use the same AC input, so a suitable source-selection arrangement is needed if both are installed. The maximum AC charging current is 120A on the battery side; set charging to suit the generator, battery, and simultaneous loads.
Can I use solar first and keep the grid as backup?
Yes. Solar self-consumption and configurable operating priorities let you plan how solar, batteries, and utility power support your loads. Battery reserve and operating settings determine when each source is used. Scheduled charging and discharging can also help you shift battery use around time-of-use rates.
Can I add another inverter later?
Yes, with a parallel-capable P version, supporting up to six units. For the pictured M220 configuration, that is GES48100M220-500P. The version without P does not support parallel expansion. Additional units, communication connections, battery capacity, and wiring must be compatible with the expanded system.
Can I install it in a garage that gets hot in summer?
A suitable garage must meet the installation and ventilation requirements. The operating range is 14°F to 131°F (-10°C to 55°C), with power derating above 113°F (45°C). Do not expect full rated output at the upper end of that range. Keep the specified mounting clearances and airflow paths unobstructed.
