Wirentech 3.6kW 120V Single-Phase Hybrid Inverter
Wirentech 3.6kW 120V inverter with household load examples including a laptop, refrigerator, TV, and washing machine.
Wirentech 3.6kW inverter with rooftop solar panels, showing a single PV input rated up to 4,500W, 27A, and 300V open-circuit voltage.
Wirentech 3.6kW inverter with icons for voltage, overload, short-circuit, overtemperature, and PV reverse-polarity protection.
Wirentech 3.6kW inverter measuring 16.85 × 11.02 × 4.33 inches and weighing 7.8 kg, with operating temperature information.
Wirentech 3.6kW inverter connection diagram showing solar panels, battery, utility grid, backup loads, breakers, and a CT sensor.
Home backup applications for the Wirentech 3.6kW inverter, showing essential circuits, refrigeration, a home office, and lighting.
Wirentech W-US-3.6kW inverter pictured with manuals, Wi-Fi module, CT sensor, communication cables, filters, and mounting hardware.
Wirentech monitoring app showing solar and battery energy flow, device status, energy reports, and system settings.

Wirentech 3.6kW 120V Single-Phase Hybrid Inverter

$399.00
Hurry, only 5 items left in stock!
Secure payment
American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Reliable delivery
UPS FedEx DHL

Services & Benefits

Free Shipping

Free shipping is available on eligible inverter orders and destinations when shown on the product page or at checkout. Remote-area, freight, customs, or special-handling charges may apply where applicable.

View shipping policy
30-Day Return Window

Inverters purchased directly from Wirentech may be eligible for return within 30 days of delivery. Items must meet the return conditions, and prior authorization is required. Return shipping or other fees may apply to non-quality-related returns.

View return policy
Ships from Our US Warehouse

Eligible in-stock inverter orders ship from our California warehouse. Most orders are processed within 1–2 business days and typically arrive within 3–7 business days after shipment. Delivery times are estimates and may vary by destination, carrier schedule, weather, and freight requirements.

View delivery details
2-Year Warranty

Wirentech inverters are backed by a 2-year limited warranty covering verified defects in materials or workmanship under normal use. Warranty eligibility and available remedies are subject to the product condition, proof of purchase, installation details, and technical review.

View warranty policy

Pairs well with
Order before today’s Pacific Time cutoff: --:--:--
Ordered Today
Ships 1–2 business days
Delivery 4–9 business days

Weekend orders will be processed the following Monday.

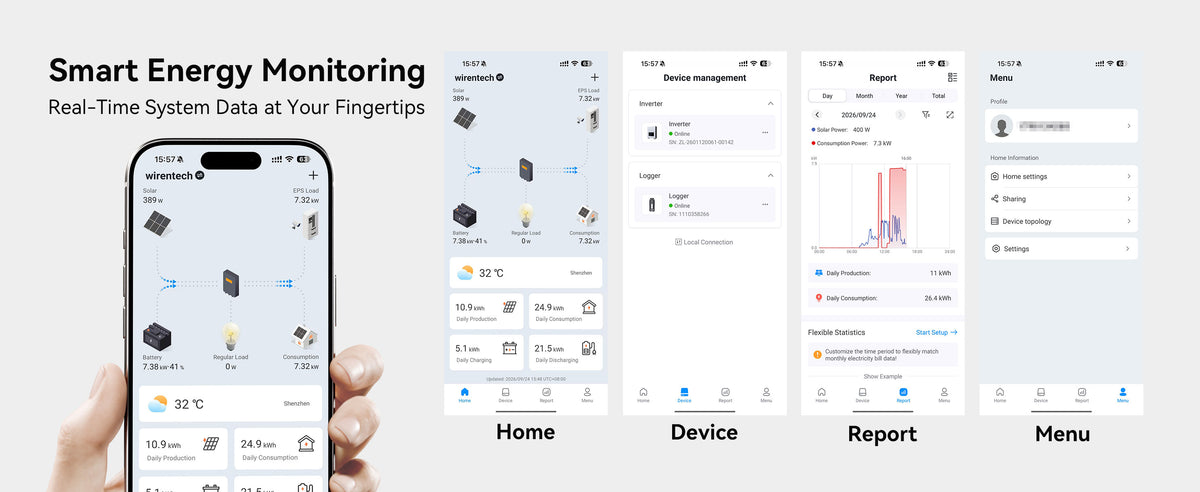

 See Your Energy

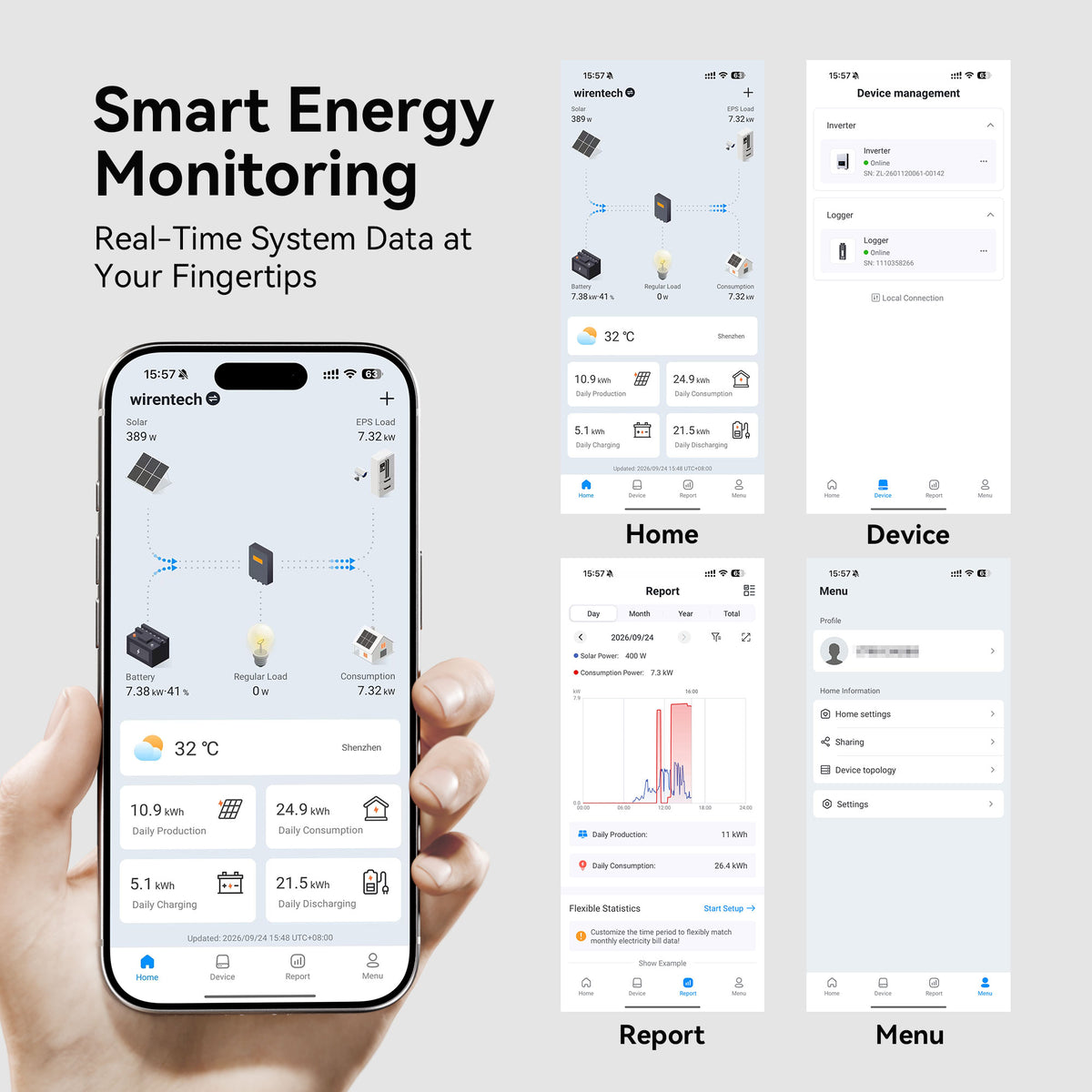

Check operating data and device status from your phone using a compatible Wi-Fi module and supported app. Keep an eye on your system without standing at the inverter’s display.

Mobile monitoring app screens showing energy flow, battery status, device management, and energy reports.

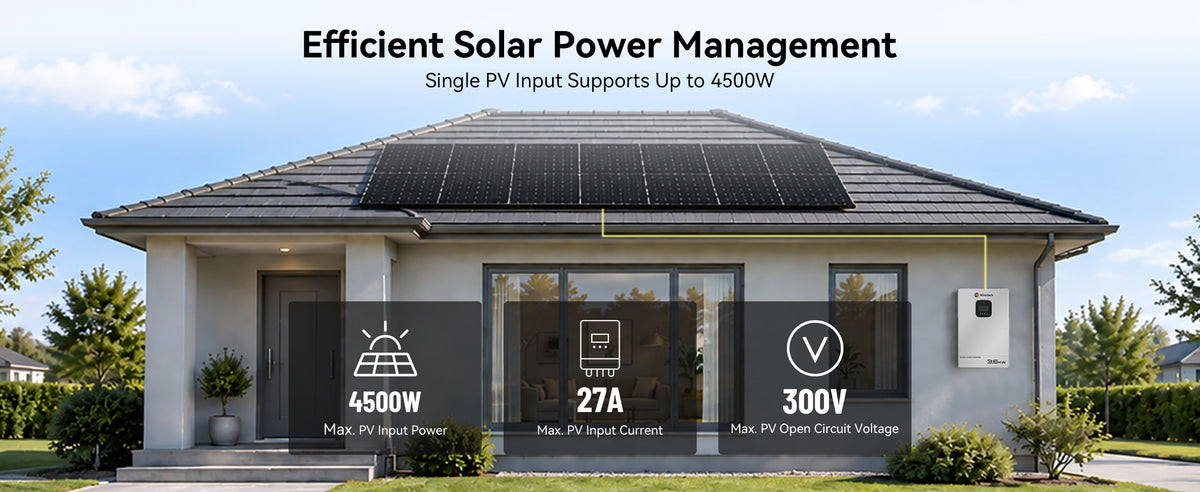

 Harvest More Sunshine

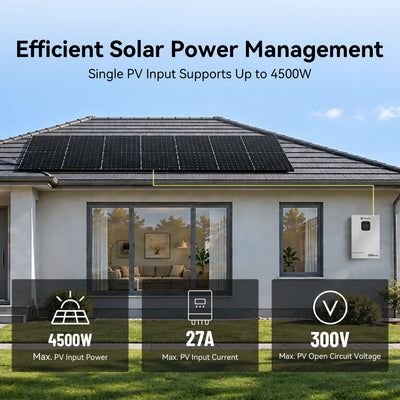

Make room for up to 4,500W of solar input through a single MPPT input. A 27A input-current limit and 90–260V tracking range support a properly sized array, with a 300V maximum open-circuit voltage.

Wirentech 3.6kW inverter with rooftop solar panels and single-input PV ratings of 4,500W, 27A, and 300V maximum Voc.

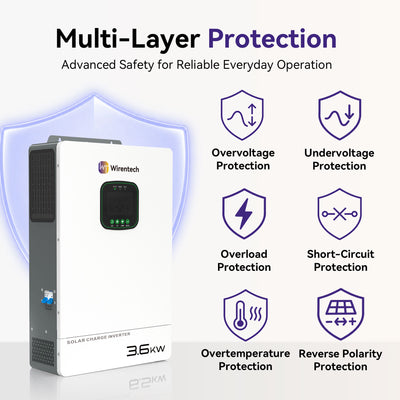

 Built-In Safeguards

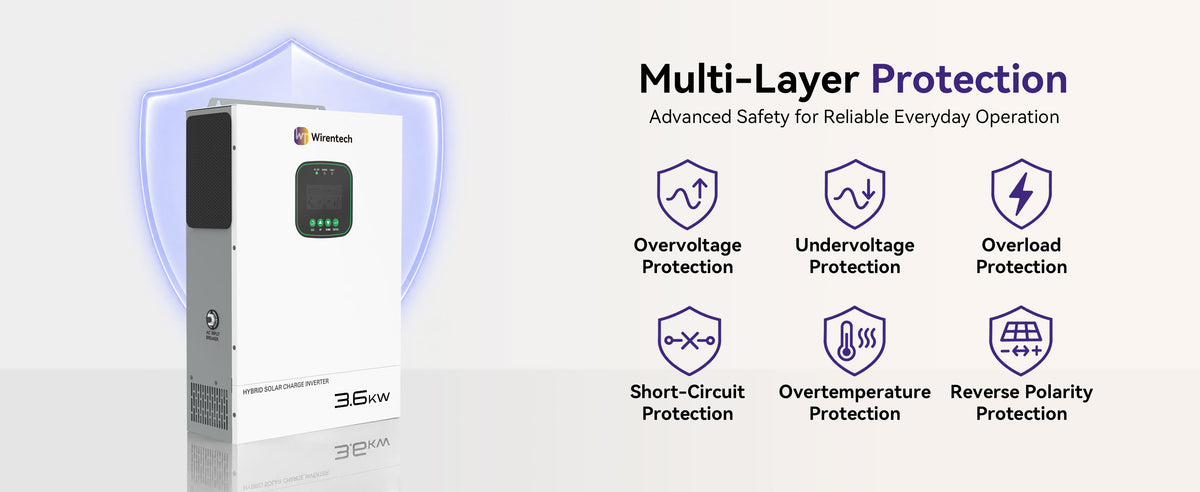

Support everyday operation with voltage, overload, short-circuit, and temperature protection. PV reverse-polarity protection provides an additional safeguard at the solar input.

Wirentech 3.6kW inverter beside icons for overvoltage, undervoltage, overload, short-circuit, overtemperature, and PV polarity protection.

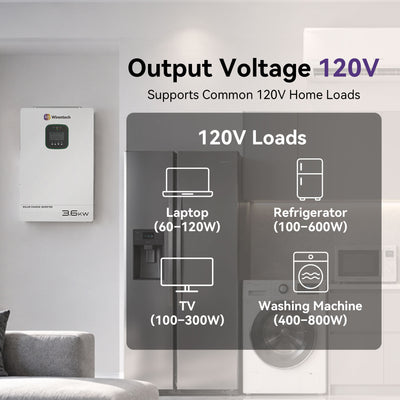

 Power Daily Essentials

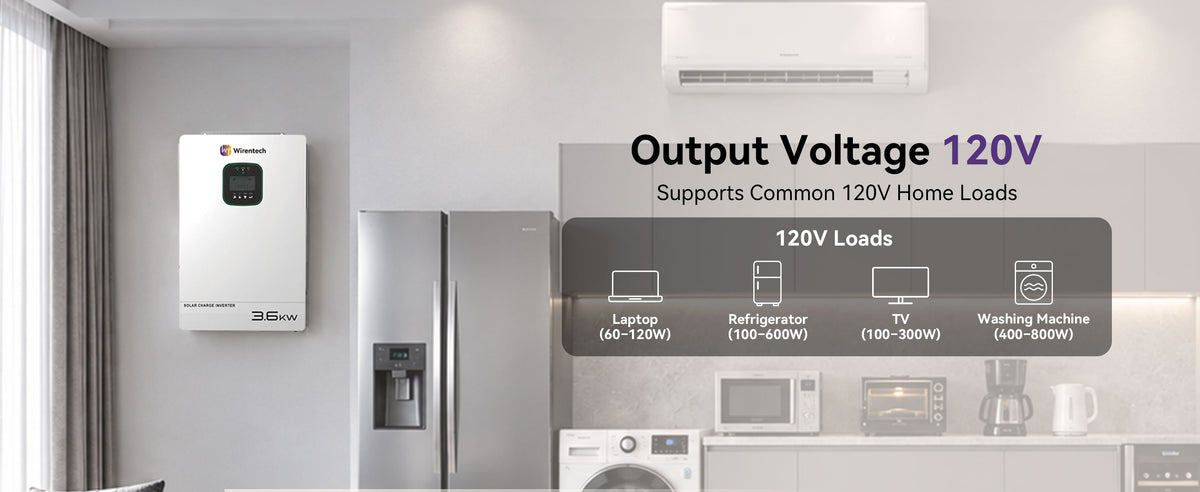

Keep your everyday routine powered with 3,600W rated output and 120V pure sine wave power. Supply compatible refrigerators, laptops, TVs, and other essentials while keeping total demand and startup loads within the system’s limits.

Wirentech 3.6kW 120V inverter with examples of household loads: laptop, refrigerator, television, and washing machine.

 Keep Life Connected

Build backup around refrigeration, home-office equipment, lighting, and entertainment. Pair with compatible 48V battery storage to support selected 120V essential circuits during an outage, with loads sized to the 3,600W rated output.

Home backup applications showing an essential-loads panel, refrigerator and kitchen, home office and network, and living-room lighting and entertainment.

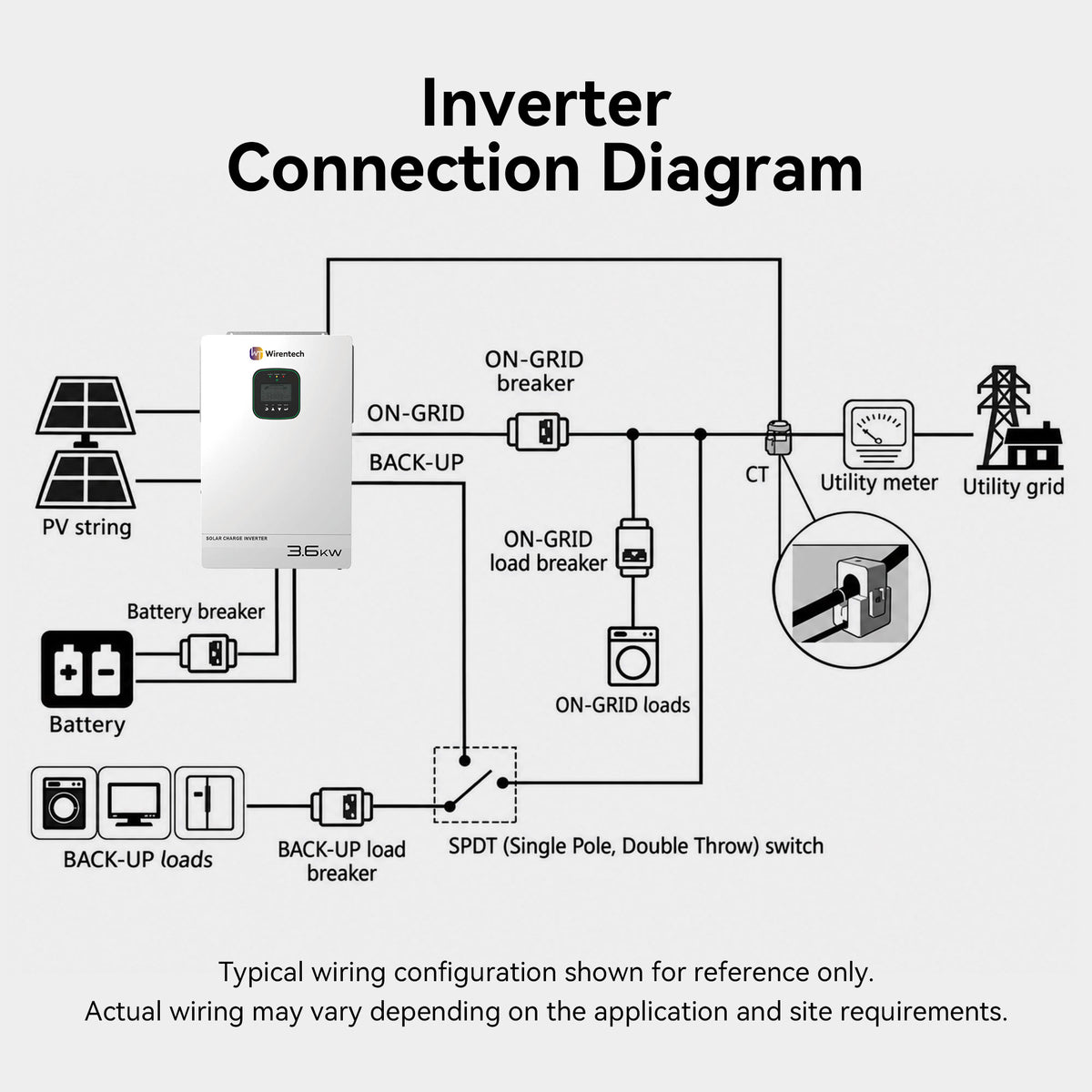

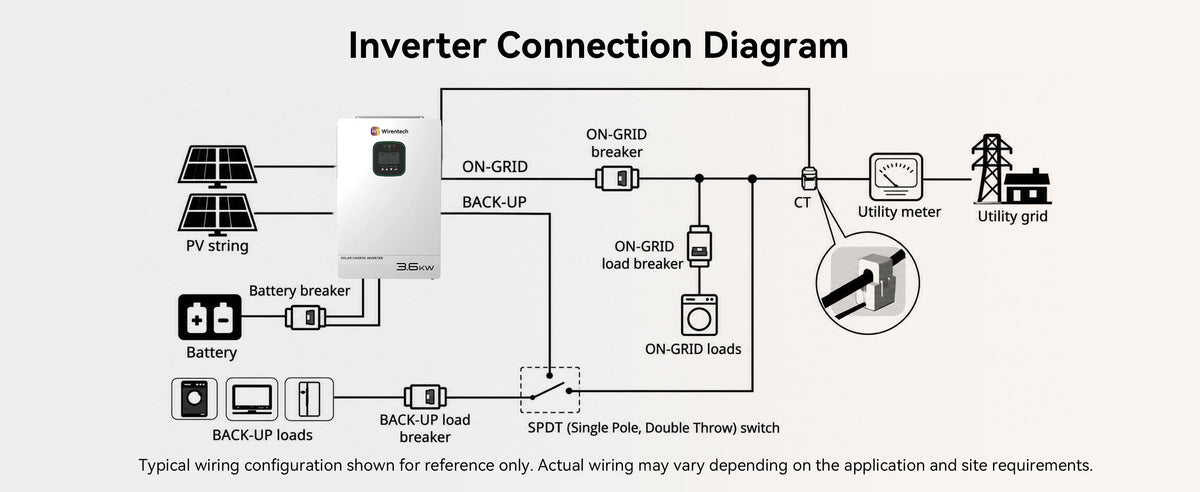

 Connect Your Power

Bring solar generation, compatible 48V battery storage, utility input, and selected backup loads into one planned system. Use the model-specific installation instructions for the final design; CT-based self-use requires the supported option and matching sensor.

Reference connection diagram showing the 3.6kW inverter, solar array, battery, utility supply, backup loads, breakers, transfer switch, and CT.

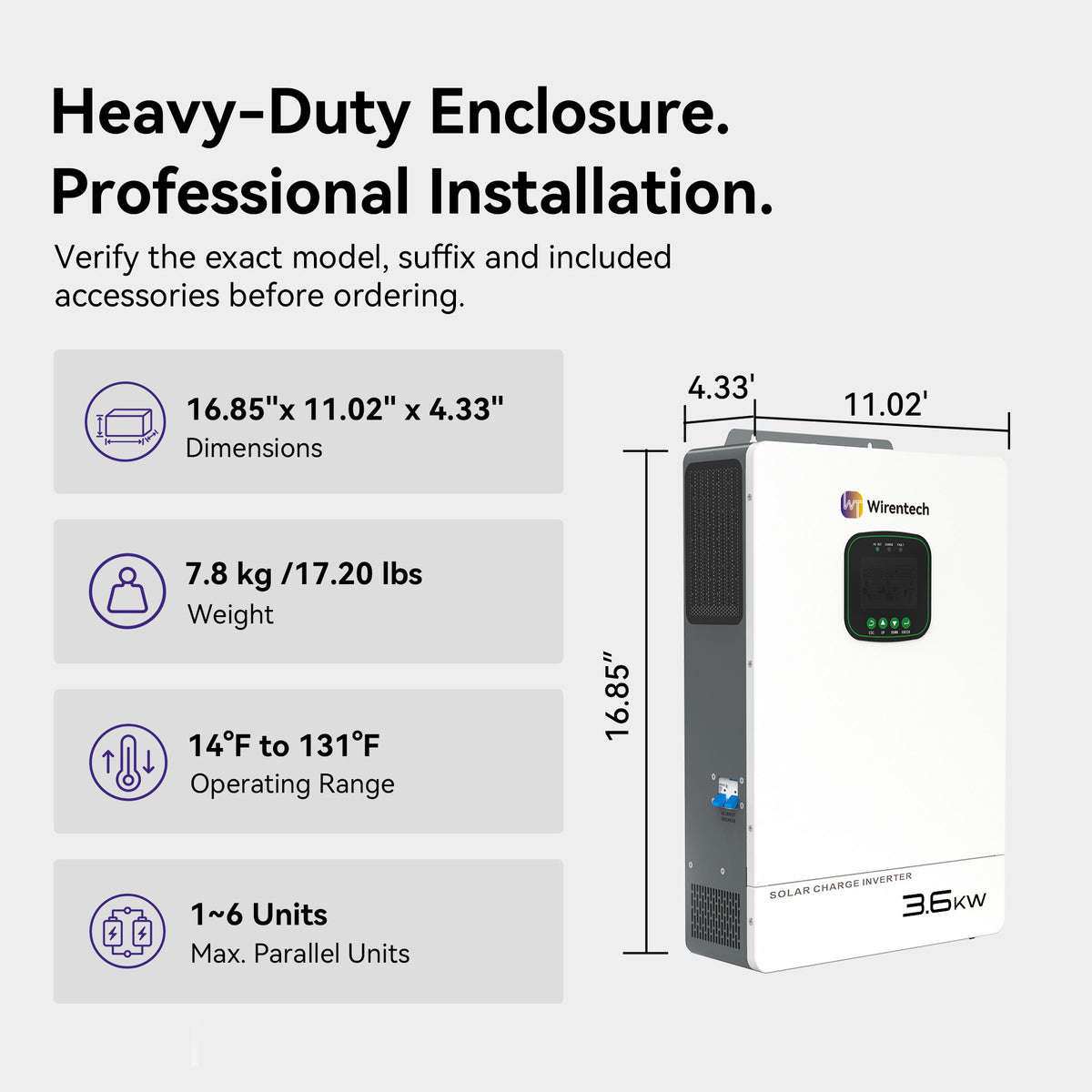

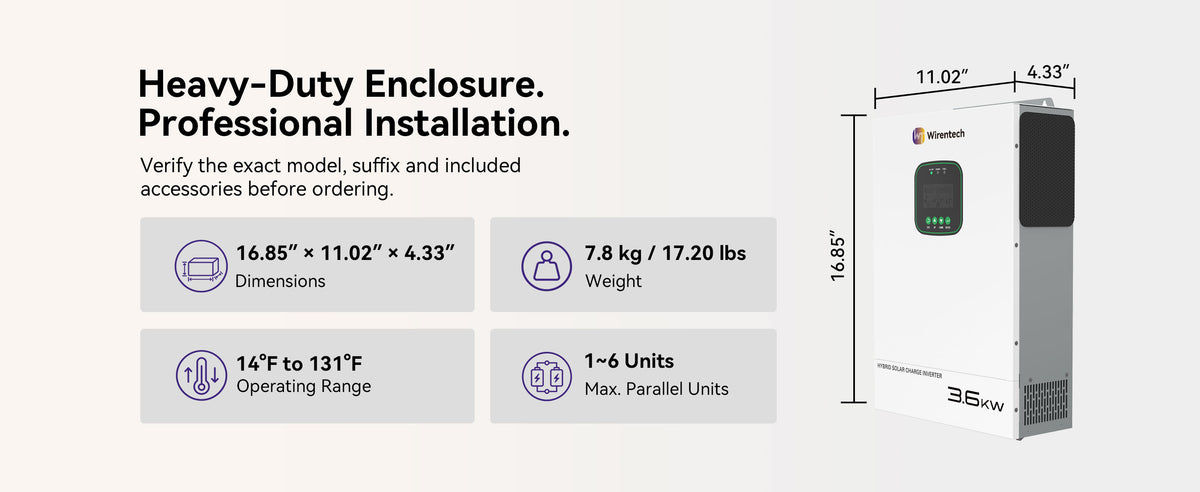

 Compact Power Setup

Create a dedicated power area with a 16.85 × 11.02 × 4.33-inch enclosure weighing 17.20 lb (7.8 kg). The operating range is 14°F to 131°F; parallel expansion is available only on the 300P version.

Wirentech 3.6kW inverter measuring 16.85 inches high, 11.02 inches wide, and 4.33 inches deep, weighing 17.20 pounds.

 Plan Your Installation

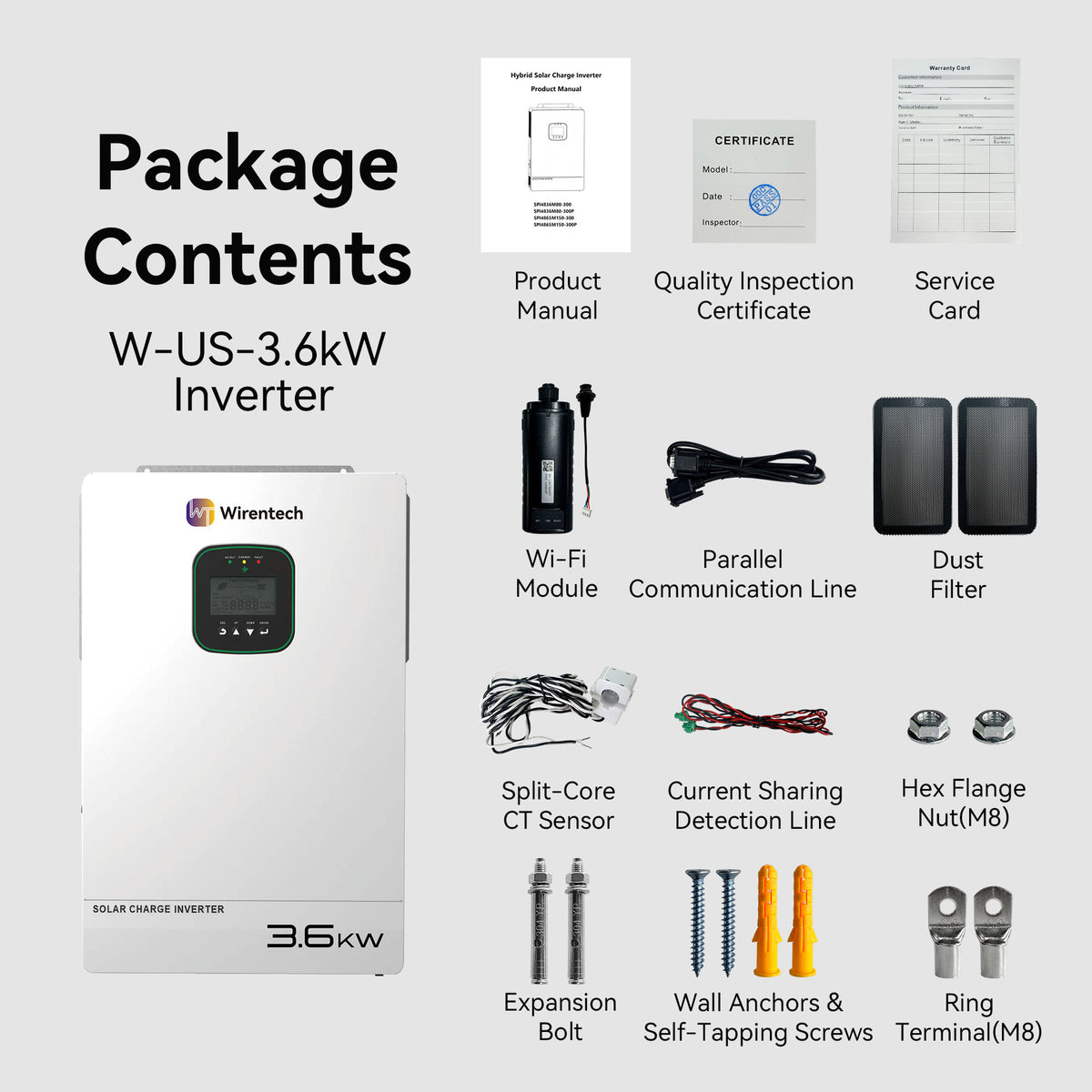

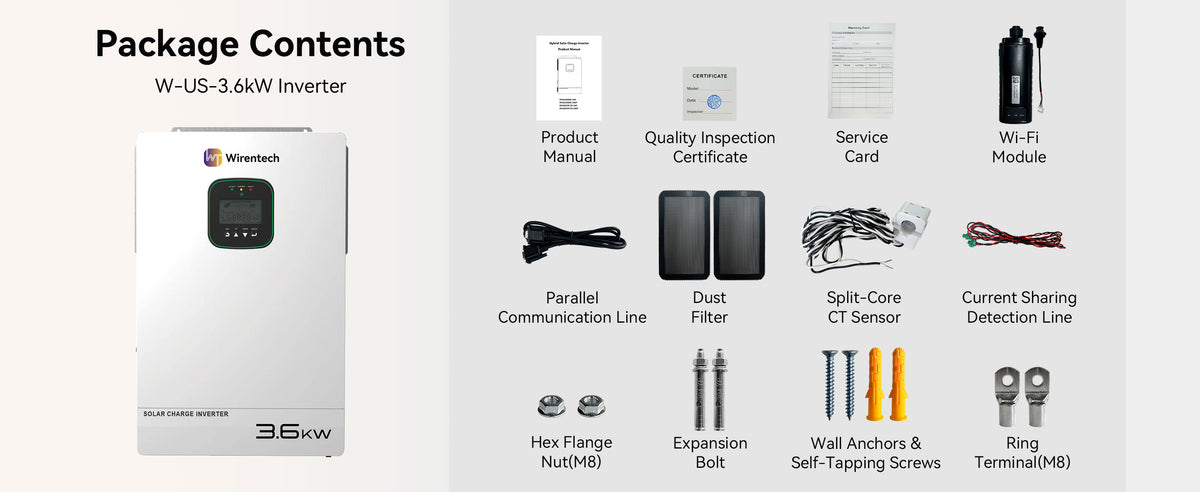

Review the inverter, documentation, and pictured accessories before installation. Wi-Fi and CT options depend on the ordered configuration, while parallel accessories apply to the 300P version. Check your confirmed package list when planning the system.

W-US-3.6kW inverter pictured with documents, Wi-Fi module, CT sensor, filters, parallel and current-sharing cables, and mounting accessories.

FAQs

Why does a 3.6kW inverter accept 4.5kW of solar panels?

PV input capacity and AC output power are different ratings. This model accepts up to 4,500W of PV input, while its rated inverter output remains 3,600W. A larger array can help make use of available sunlight, but it does not turn the inverter into a 4.5kW AC power source. Actual solar use also depends on the load, battery charging demand, and operating conditions. The array must stay within the 300V maximum open-circuit voltage and 27A input-current limit.

Does this model have two independent MPPT inputs?

No. This 3.6kW model has one MPPT/PV input. Its limits are 4,500W, 27A, and 300V maximum open-circuit voltage, with a 90–260V MPPT range. It does not track two roof orientations independently. If your panels face different directions or have different shading conditions, have the array layout checked for this single-input design before ordering.

Can a large battery bank fully recharge during a short off-peak window?

Not necessarily—battery capacity and charging speed need to be sized together. This model supports scheduled charging, with up to 60A of AC charging; the battery’s own limits may require a lower setting. For scale, 60A at an illustrative 54V battery charging voltage is about 3.24kW, or 9.72kWh over three hours if that rate were maintained. That is a constant-rate estimate, not a promised recharge result: charge tapering, battery limits, and operating conditions can reduce it.

After a low-battery shutdown, will charging immediately restore AC output?

The battery must first recover to the configured recovery level. The manual specifies a separate battery-voltage recovery point after over-discharge protection; simply starting to charge does not mean the inverter output can restart immediately. Have the battery type, cutoff and recovery settings matched to your battery manufacturer’s requirements, and check the displayed fault code if output does not return.

Can I monitor the inverter without buying a Wi-Fi module?

Yes. The built-in LCD provides local operating information. The manual also describes a USB connection for optional PC monitoring software, which requires the matching USB driver. Phone-app monitoring requires a compatible Wi-Fi module; confirm whether your package includes it. The manual states that PC monitoring and the Wi-Fi module cannot be used at the same time.
